Yup, install time again! This will be my 3rd power adder install thread on this forum! This time a SERIES IV SALEEN SUPERCHARGER kit.
This ones gonna be a cool build, it's going to be mounted on a friends 2004 Triple Black Convertible Beauty! The kit was bought in the winter from a U.S U.S Ford Dealer. As luck would have it, it was missing a few key parts and gathering these parts was no easy task.
No help from Saleen they were useless as the kit was discontinued they didn't stock parts and offered no help in obtaining them whatsoever, pretty disappointing for a company with such a strong Mustang following, I have always liked Saleen, but sourcing those parts has turned me from them.
The owner chose the kit based on reviews, ease of install, looks and price point. In hindsight with maybe some research in parts availability department may have swayed the choice of the Saleen kit but damn the torpedo's...were gonna throw it on now anyway!
We have to get this one completed tuned and dynoed before the weekend for a local show and shine.. hopefully we can get it completed and line up the 3 supercharged cars together for a few pics
I will update the build with a few pictures as we go along!

Cheers



well i wish u guys good luck and would like to see the pics when its all done



Doing so many I am thinking this, make it a challenge and do it blindfolded lol



Can't wait to see the pics. I've got the install manual if you want it!



This stuff is going to make you a pro!!Good luck with the install!



Sounds like a lot of hassle when you could buy other kits that are complete, but price and ambition are great motivators! Good luck on the install, sounds like you're all set!



Should be a beast when it's done. I had a go around with Saleen also a few years ago. I purchased a body kit for my 04 GT Convertible and got it from Advantage Ford. When I got it there was no hardware or instructions. I called Advantage and they said that they order the kits in bulk several at a time and that is how they come. I emailed Saleen a few different times and didn't even recieve a reply. I will never buy one of their products again.



Thanks Guys, Yes it is a bit of a hassle that's for sure but the owner really liked the kit and this twin screw was in the budget! It does look great, hoping the final results are good.
Here is the Mustang and what we have done so far.

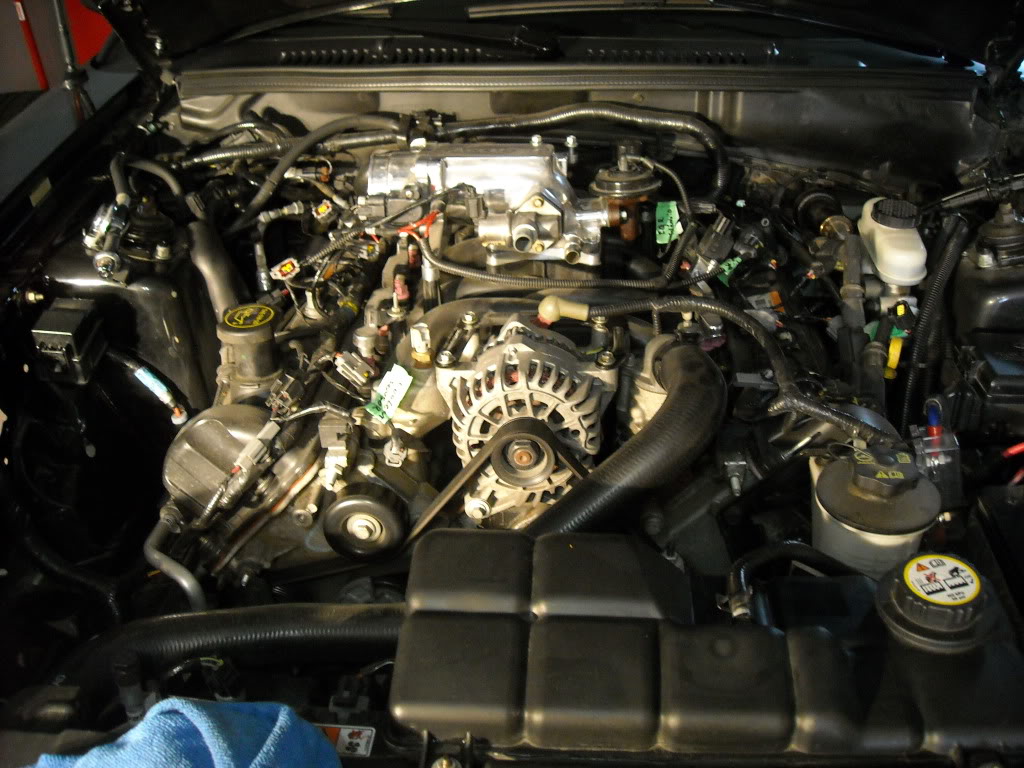

2004 GT Lowered 2" with a few goodies!



The new parts ready to be installed.

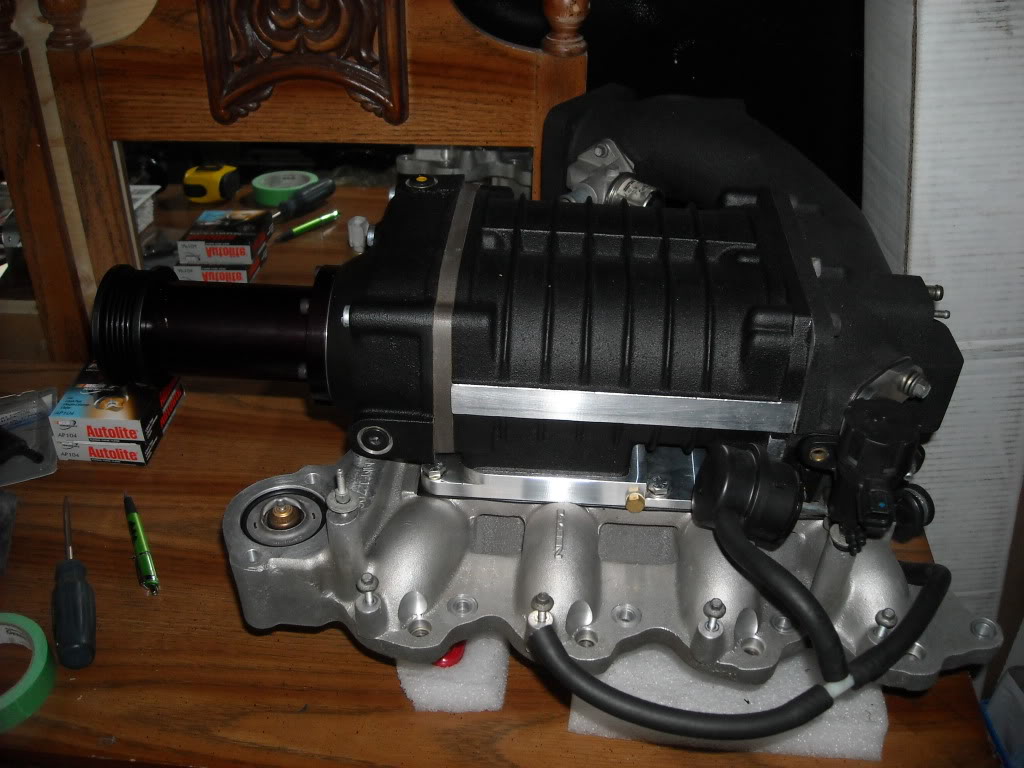

The Voodoo Box, (Saleen Series IV)



CAI removed, Battery disconnected and ready to dig in.

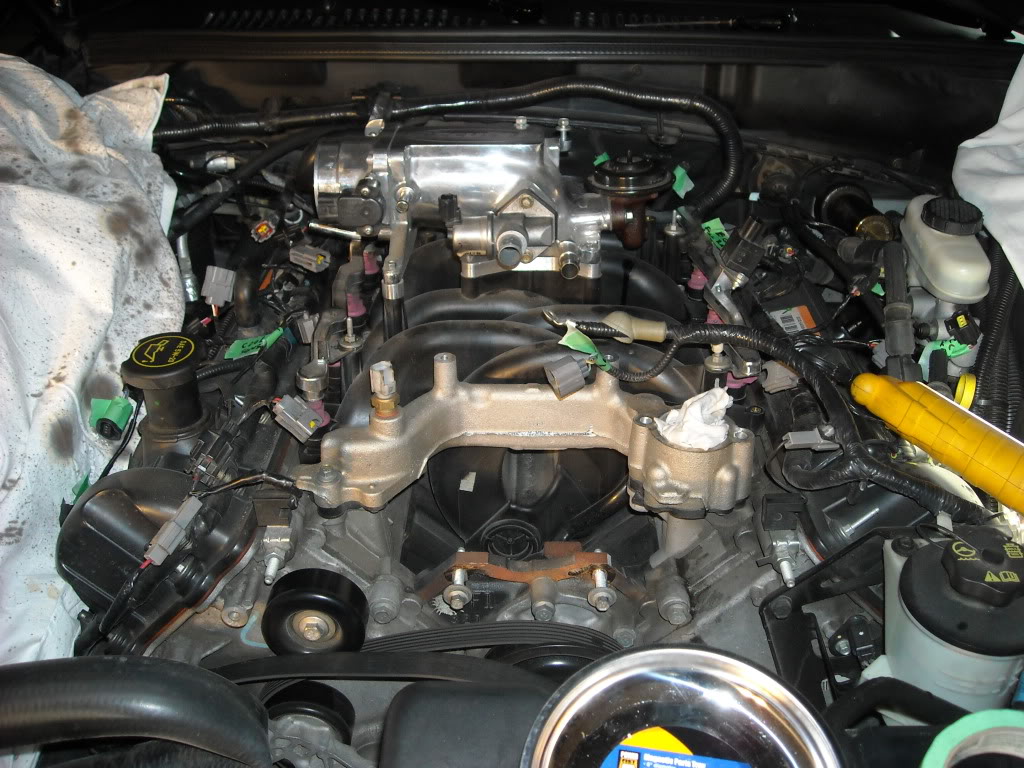

Alt removed,Various plugs marked and Really stubborn ERG, PVT Crap removed..More powerful Stang will have egr delete..

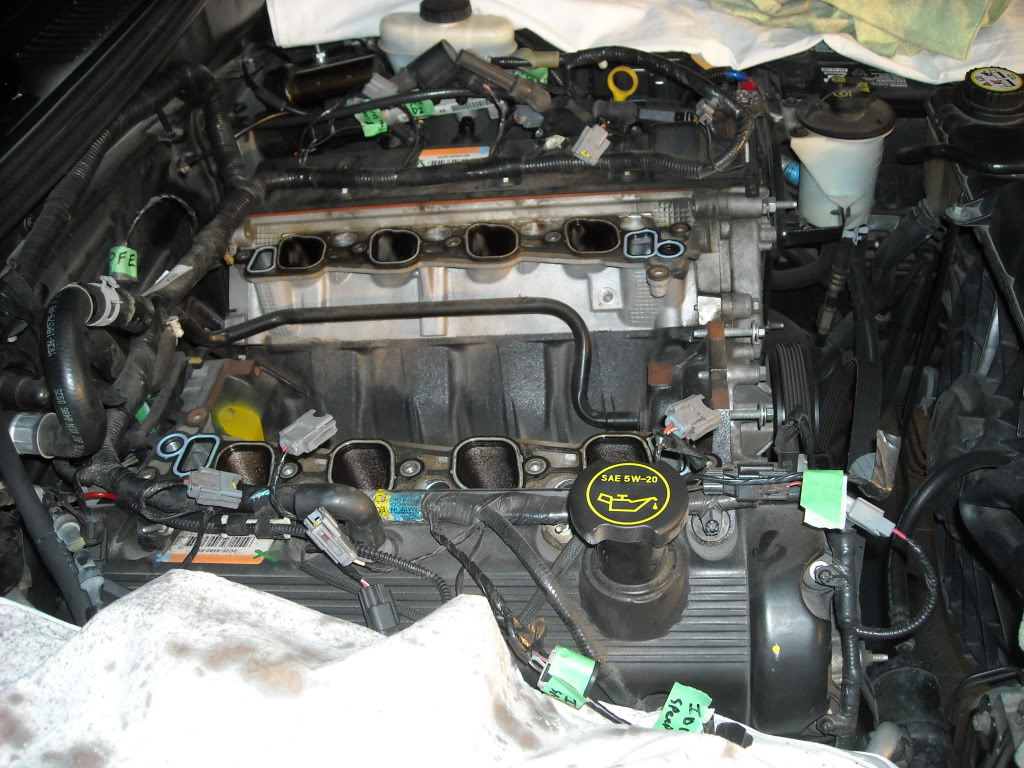

Intake removed and getting ready to remove coolant tube.. BTW the new tube had to be heated and bent due to poor quality control.. caused 1 hour of cursing and 1 burnt pinky finger New plugs installed..

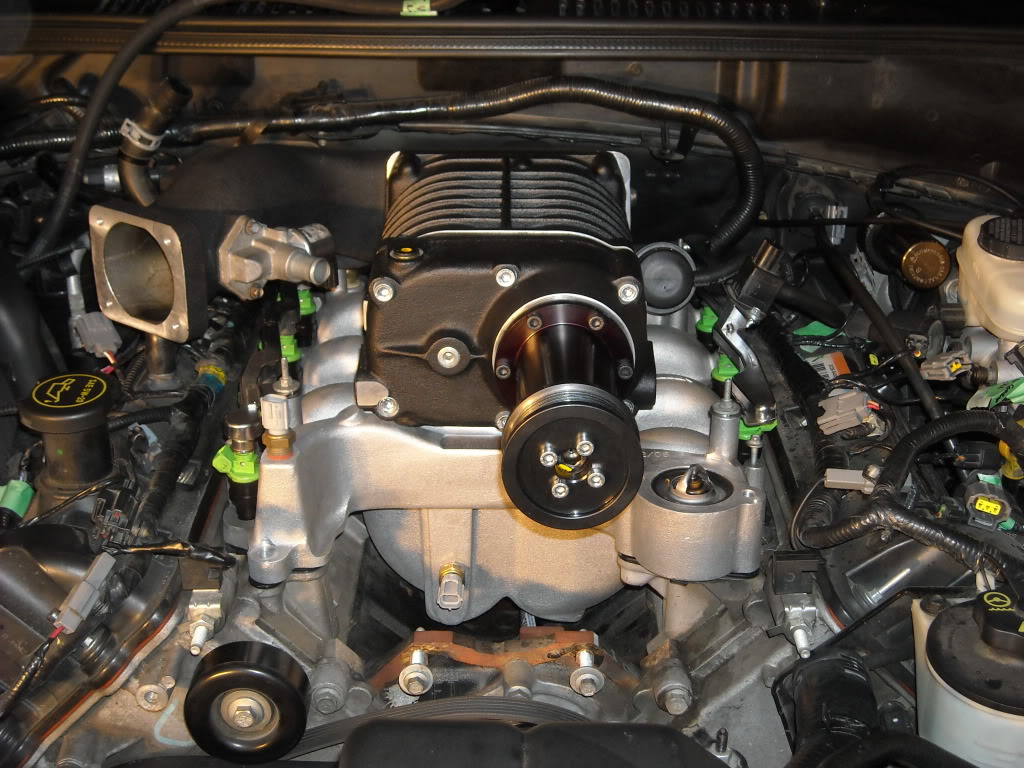

Voodoo Box mounted.. Mile Stone after 3 attempts due to poor coolant tube fitment..

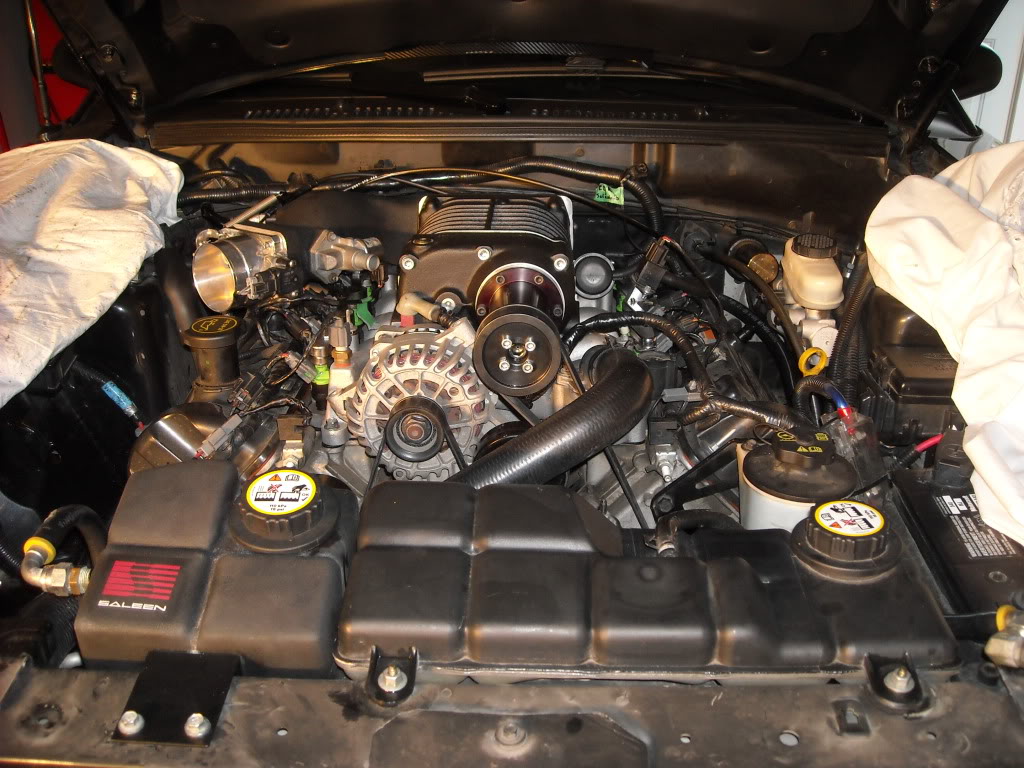

Alt, Belt, Pulley, and coolant tank installed..

Next update will be the intercooler, pump and fluids.. Gotta install the tune and off to the treadmill
Cheers!



Damn thats awesome, thanks for sharing



Another nice clean install!!
